Datadog

Plugin details
Created byRoadieHQ
CategoryMonitoring
SourceGitHub
TypeOpen-source plugin

Configuration​

Application configuration YAML​

No action required

  • This is a frontend plugin without any authentication configured hence no configuration required.

Secrets​

  • No secrets are required for this plugin as there are no authentication configured.

Layout​

No action required

This plugin exports a UI tab that you can use as a new Datadog tab for a service or for any other layout page. The following configuration is set by default in Layout under Admin for Service and you do not need to change anything:

    - name: EntityDatadogContent
      path: /datadog
      title: Datadog
      contents:
        - component: EntityDatadogContent

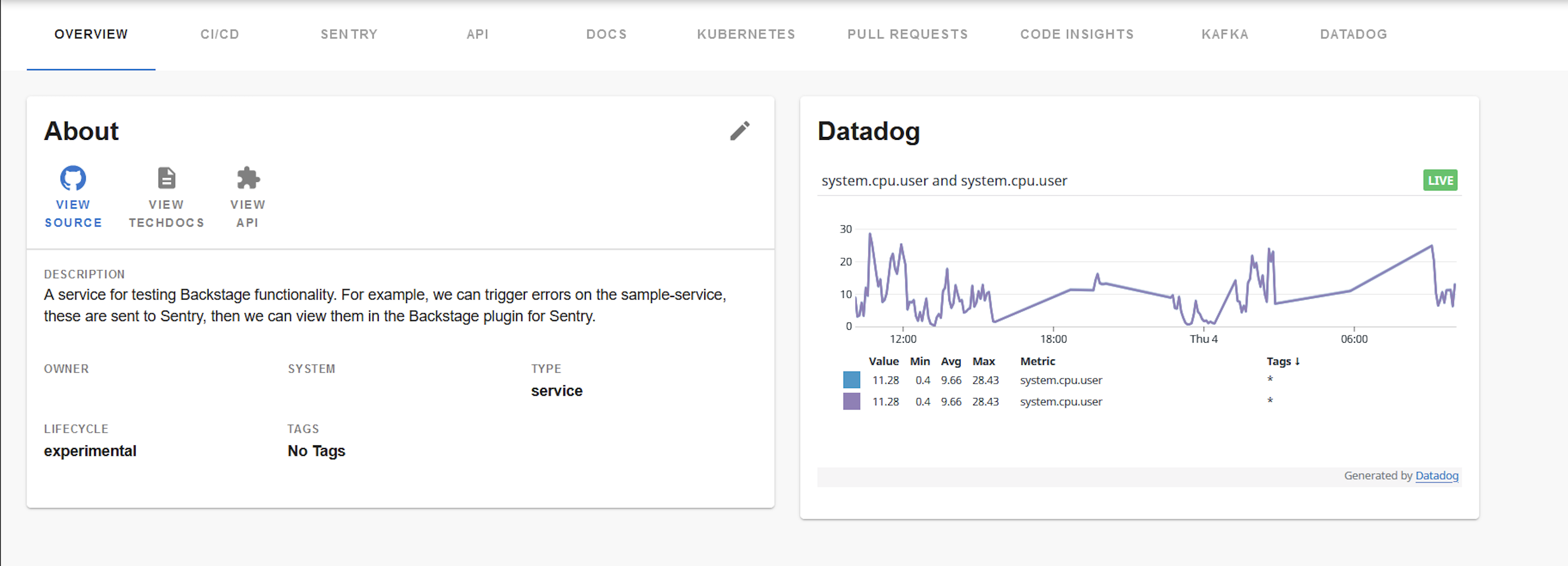

This plugin exports the EntityDatadogGraphCard that you can show on the Overview tab of a service or any other layout page. The following configuration is set by default in Layout under Admin for Service and you do not need to change anything:

- component: EntityDatadogGraphCard

Annotations​

To configure the plugin for a service in the software catalog, you need to add specific annotations to its catalog-info.yaml definition file. Below are the steps to configure these annotations.

Embedding a Datadog Dashboard in Backstage​

Steps to Get the Dashboard URL​

  1. Navigate to the dashboards list by hovering over Dashboards on the page’s left-hand side and selecting Dashboard List.

  2. Select a dashboard from this list.

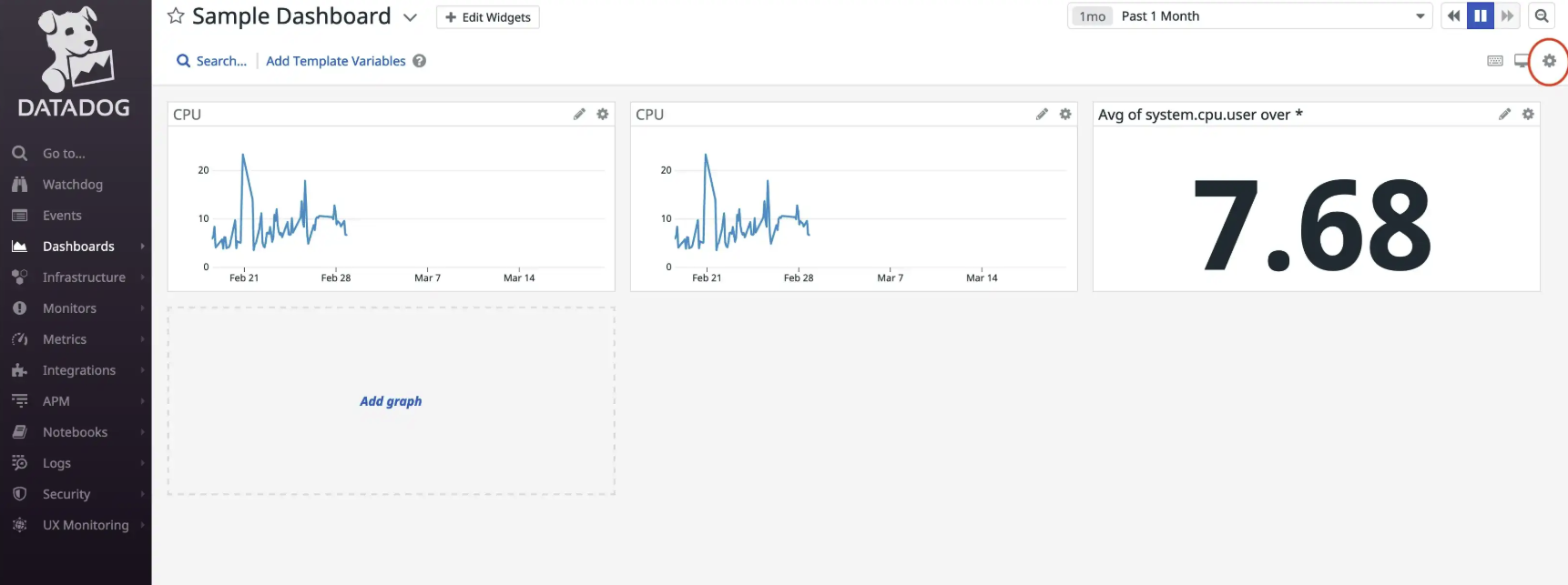

  3. Within the chosen dashboard, click the Settings cog on the right-hand side of the screen, circled in red.

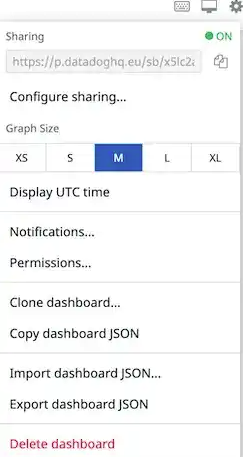

  1. Copy the URL from the Sharing text box.

  1. Use this URL as the value for the datadoghq.com/dashboard-url annotation.

Add the annotations and the values from Datadog to your component’s metadata file.

## Example catalog-info.yaml
apiVersion: backstage.io/v1alpha1
kind: Component
metadata:
  name: sample-service
  description: |
    A sample service
  annotations:
    datadoghq.com/site: datadoghq.com ## non-default top level domain
    datadoghq.com/dashboard-url: <<DATADOGURL>>
...
info

Setting the Datadog Domain​

By default, the Datadog embedded graph uses datadoghq.eu as its top-level domain unless specified otherwise. If you are using a different domain, you must specify it using the datadoghq.com/site annotation.

...
datadoghq.com/site: datadoghq.com
...

Support​

The plugin is owned by Roadie and managed in this repository as an open-source project. Create a GitHub issue to report bugs or suggest new features for the plugin.
